Overture ABS, Black
Latest price$20.99$20.99 per kg
Buy on Amazon →| Manufacturer | Overture |
| Filament type | ABS |
| Data sheet | Not available |
| Format | 1.75 mm ±0.02 |
| Finish | Standard |
| Color | Black |
| Warranty | 2-year Warranty |
| Availability | In Stock |

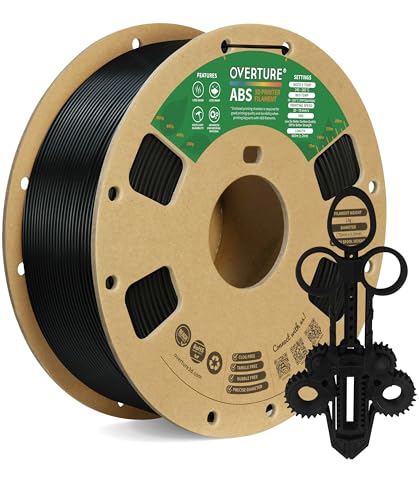

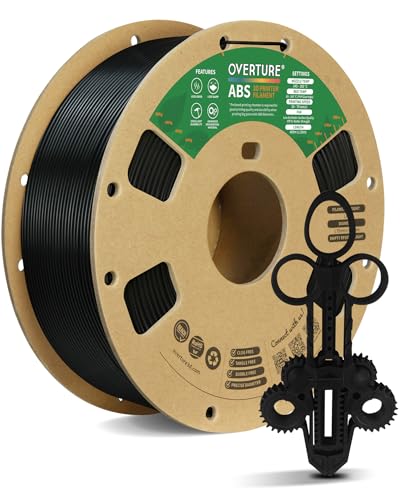

| Image |  OVERTURE ABS Filament 1.75mm, ABS 1kg Spool (2.2lbs),3D Printer Filament,Dimensional Accuracy +/- 0.02 mm, Fit Most FDM Printer (Black 1-Pack) |
Technical properties
| Density | 1.14 g/cm³ | ISO 1183 |
| Glass Transition Temperature | 101 °C | DSC, 10°C/min |
| Vicat Softening Temperature | 103 °C | ISO 306 |
| Melt Index | 9-14 g/10 min | 220°C / 2.16kg |
| Decomposition Temperature | 380 °C | TGA, 20 °C/min |
| Young's Modulus (X-Y) | 2174 MPa ±285 | ISO 527 |
| Young's Modulus (Z) | 1866 MPa ±51 | ISO 527 |
| Tensile Strength (X-Y) | 33.4 MPa ±0.8 | ISO 527 |
| Elongation at Break (X-Y) | 2.7 % ±0.4 | ISO 527 |
| Bending Modulus | 2844 MPa ±411 | ISO 178 |
| Bending Strength | 72.8 MPa ±0.8 | ISO 178 |
| Charpy Impact Strength | 2.7 kJ/m² ±0.2 | ISO 179 |
| Tensile Strength (Z) | 28.4 MPa ±0.5 | ISO 527 |
| Shore hardness | 72 D | ISO 7619 |
| Rockwell hardness | 54 HRC | ASTM D785 |
Print suggestions
| Nozzle temp | 245-265 °C |
| Build surface material | Overture Build Surface, Glass, Blue Tape |
| Build surface treatment | None |
| Build surface temp | 90-105 °C |
| Cooling fan | Off |
| Print speed | 30-50 mm/s |
| Raft separation distance | 0.2 mm |
| Retraction distance | 1 mm |
| Retraction speed | 20 mm/s |
| Env temperature | 20-50 °C |
| Threshold overhang angle | 50 ° |
| Support material | None |
