Overture ASA, Blue
Latest price$29.59$29.59 per kg
Buy on Amazon →| Manufacturer | Overture |
| Filament type | ASA |
| Data sheet | Source → |
| Format | 1.75 mm ±0.02 |
| Finish | Anti UV |
| Color | Blue Available in 12 other colors → |
| Warranty | 2-year Warranty |
| Availability | In Stock |

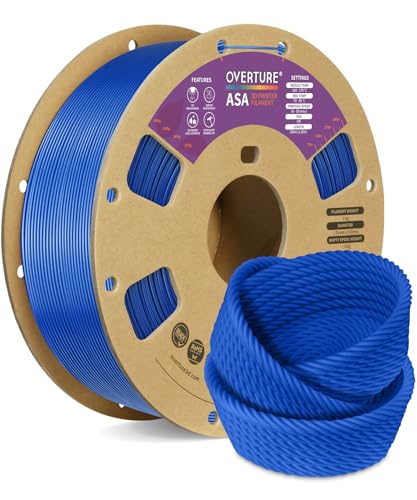

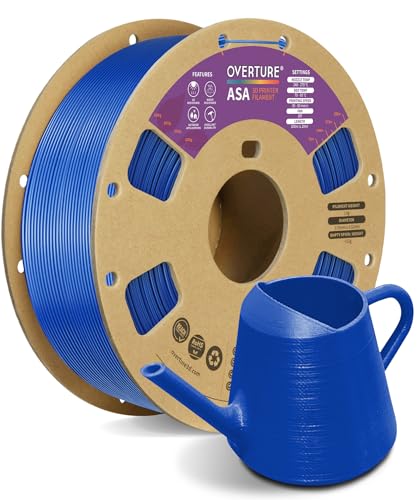

| Image |  OVERTURE ASA Filament 1.75mm, 1kg Spool (2.2lbs) 3D Printer Filament, Premium Anti-UV, ASA Filament Perfect for Printing Outdoor Functional Parts, Dimensional Accuracy +/- 0.02 mm (Blue) |
Technical properties
| Density | 1.14 g/cm³ | ISO 1183, GB/T 1033 |
| Vicat Softening Temperature | 106.2 °C | ISO 306 GB/T 1633 |
| Melt Index | 13.1 g/10min | 220°C, 10kg |
| Young's Modulus (X-Y) | 2372 MPa ±145 | ISO 527, GB/T 1040 |
| Tensile Strength (X-Y) | 45.1 MPa ±0.6 | ISO 527, GB/T 1040 |
| Tensile Strength (Z) | 33.1 MPa ±1.1 | ISO 527, GB/T 1040 |
| Elongation at Break (X-Y) | 4.2 % ±0.8 | ISO 527, GB/T 1040 |
| Bending Modulus (X-Y) | 3221 MPa ±109 | ISO 178, GB/T 9341 |
| Bending Strength (X-Y) | 74.9 MPa ±2.1 | ISO 178, GB/T 9341 |
| Notched Charpy Impact Strength (X-Y) | 13.1 kJ/m² ±1.5 | ISO 179, GB/T 1043 |
Print suggestions
| Nozzle temp | 240-270 °C |
| Build surface material | PA film, PI film, Textured PEI |
| Build surface treatment | Applying PVA glue to the build surface |
| Build surface temp | 70-95 °C |
| Cooling fan | Off |
| Print speed | 30-50 mm/s |
| Raft separation distance | 0.1-0.2 mm |
| Retraction distance | 1-3 mm |
| Retraction speed | 20-40 mm/s |
| Threshold overhang angle | 50 ° |
| Support material | None |
