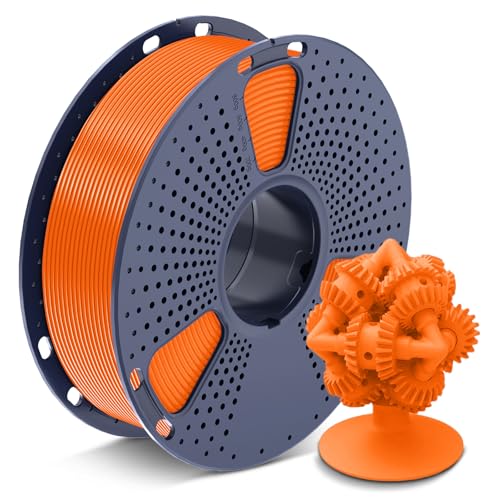

Sunlu ASA Orange

Latest priceUnavailable

Buy on Amazon →

Manufacturer	Sunlu
Filament type	ASA
Data sheet	Not available
Format	-
Finish	Standard
Color	Orange Available in 1 other colors →
Warranty	No info provided
Availability	API Error: 403
Image	SUNLU ASA Filament 1.75mm, UV/Rain/Heat Resistant Tough 3D Printer Filament, Great for Printing Outdoor Functional Mechanical Parts, 0.9kg Spool (1.98lbs), 340 Meters, Orange

Technical properties

CompareVisualize

Tensile strength (X-Y)	39 MPa ±4	ISO 527-2
Elongation at break (X-Y)	11 % ±3	ISO 527-2
Flexural strength (X-Y)	68 MPa ±5	ISO 178
Flexural modulus (X-Y)	2300 MPa ±300	ISO 178
Notched Izod impact strength (X-Y)	7 kJ/m² ±3	ISO 180
Unnotched Izod impact strength (Z-X)	3.3 kJ/m² ±1.5	ISO 180
Shore hardness	81.5 D	ISO 868
Glass transition temperature	108 °C	ISO 11357-2
Melting temperature	120 °C	ISO 11357-3
Decomposition temperature (5 % weight loss)	392 °C	ISO 11358
Vicat softening temperature	105 °C	ISO 306
Density	1.04 g/cm³	ISO 1183

Characteristics

Flammability (UL 94)	HB	Data Sheet
Weak acids (pH 3-6)	Excellent	Data Sheet
Strong acids (pH <3)	Fair	Data Sheet
Weak bases (pH 8-10)	Excellent	Data Sheet
Strong bases (pH >10)	Excellent	Data Sheet
Deionized water	Excellent	Data Sheet
Alcohol (ethanol)	Good	Data Sheet
Ketone (acetone)	Poor	Data Sheet
Petroleum fuels	Good	Data Sheet
Ester	Fair	Data Sheet

Print suggestions

Nozzle temp	250-280 °C
Print speed	50-200 mm/s
High speed nozzle temp	260-280 °C
High speed print speed	100-200 mm/s
Build surface temp	80-100 °C
Build surface material	Textured PEI
Build surface treatment	Glue
Cooling fan	On
Raft separation distance	0.2-0.4 mm
Retraction distance	0.8-1.2 mm
Retraction speed	30-40 mm/s
Drying temp	80 °C
