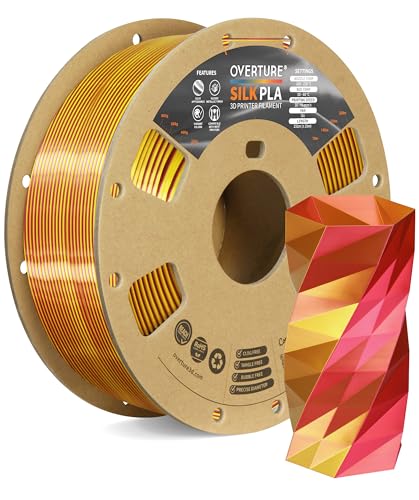

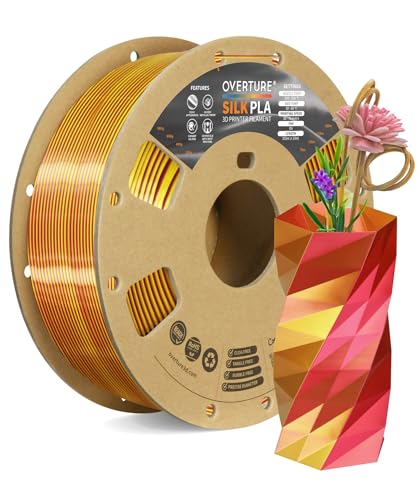

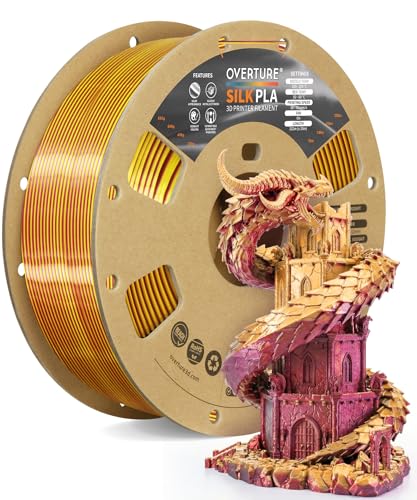

Overture Silk PLA, Magenta-gold
Latest price$25.99$25.99 per kg
Buy on Amazon →| Manufacturer | Overture |
| Filament type | PLA |
| Data sheet | Source → |
| Format | 1.75 mm ±0.02 |
| Finish | Silk |
| Color | Magenta-gold Available in 12 other colors → |
| Warranty | No info provided |
| Availability | In Stock |
| Image |  OVERTURE Silk PLA 1.75mm Dual Color Filament, Clog-Free Shiny 3D Printer Filament, 1kg Spool(2.2lbs), Dimensional Accuracy +/- 0.02 mm, Fit Most FDM Printer(Silk Magenta-Gold) |
Technical properties
| Density | 1.19 g/cm³ | ISO 1183, GB/T 1033 |
| Vicat Softening Temperature | - | ISO 306 GB/T 1633 |
| Melt Index | 12.8 g/10min | 190°C, 2.16kg |
| Melting Temperature | 153 °C | DSC, 10°C/min |
| Young's Modulus (X-Y) | 3173 MPa ±97 | ISO 527, GB/T 1040 |
| Tensile Strength (X-Y) | 55.2 MPa ±2.1 | ISO 527, GB/T 1040 |
| Tensile Strength (Z) | 18.9 MPa ±3.4 | ISO 527, GB/T 1040 |
| Elongation at Break (X-Y) | 3.5 % ±0.6 | ISO 527, GB/T 1040 |
| Bending Modulus (X-Y) | 3518 MPa ±49 | ISO 178, GB/T 9341 |
| Bending Strength (X-Y) | 87.1 MPa ±1.4 | ISO 178, GB/T 9341 |
| Notched Charpy Impact Strength (X-Y) | 2.87 kJ/m² ±0.08 | ISO 179, GB/T 1043 |
Print suggestions
| Nozzle temp | 200-220 °C |
| Build surface material | Overture Build Surface, Textured PEI |
| Build surface treatment | None, Applying PVA glue to the build surface |
| Build surface temp | 50-60 °C |
| Cooling fan | On |
| Print speed | 30-70 mm/s |
| Raft separation distance | 0.1-0.2 mm |
| Retraction distance | 1-3 mm |
| Retraction speed | 20-40 mm/s |
| Threshold overhang angle | 60 ° |
| Support material | None |
