Overture PC, Black
Latest price$38.99$38.99 per kg
Buy on Amazon →| Manufacturer | Overture |
| Filament type | PC |
| Data sheet | Source → |
| Format | 1.75 mm ±0.02 |
| Finish | Standard |
| Color | Black Available in 2 other colors → |
| Warranty | 2 |
| Availability | In Stock |

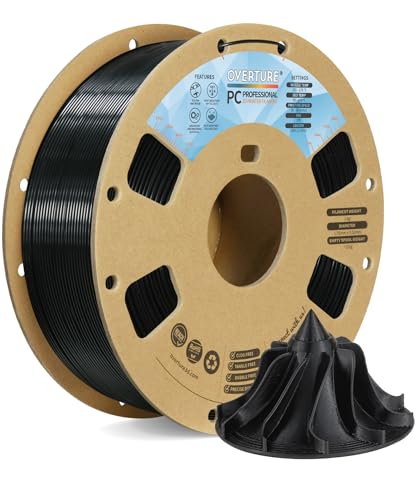

| Image |  OVERTURE Tough PC Professional Filament, Cardboard Spool, 1kg(2.2lbs), Dimensional Accuracy Probability +/- 0.02mm, Fit Most FDM Printer (Black) |
Technical properties
| Density | 1.21 g/cm³ | ISO 1183, GB/T 1033 |
| Vicat Softening Temperature | 115.3 °C | ISO 306 GB/T 1633 |
| Melt Index | 10 g/10min | 210°C, 2.16kg |
| Young's Modulus (X-Y) | 2253 MPa ±59 | ISO 527, GB/T 1040 |
| Tensile Strength (X-Y) | 70.2 MPa ±1.8 | ISO 527, GB/T 1040 |
| Tensile Strength (Z) | 44.5 MPa ±0.9 | ISO 527, GB/T 1040 |
| Elongation at Break (X-Y) | 6.7 % ±0.6 | ISO 527, GB/T 1040 |
| Bending Modulus (X-Y) | 2588 MPa ±56 | ISO 178, GB/T 9341 |
| Bending Strength (X-Y) | 93.4 MPa ±2.1 | ISO 178, GB/T 9341 |
| Notched Charpy Impact Strength (X-Y) | 5.7 kJ/m² ±1.4 | ISO 179, GB/T 1043 |
Print suggestions
| Nozzle temp | 260 °C |
| Build surface material | Overture Build Surface |
| Build surface treatment | None |
| Build surface temp | 95 °C |
| Cooling fan | Off |
| Print speed | 45 mm/s |
| Raft separation distance | 0.1-0.2 mm |
| Retraction distance | 1-3 mm |
| Retraction speed | 20-40 mm/s |
| Threshold overhang angle | 60 ° |
| Support material | None |
