Overture PC Transparent

Latest priceUnavailable

Buy on Amazon →

Manufacturer	Overture
Filament type	PC
Data sheet	Source →
Format	-
Finish	Standard
Color	Transparent Available in 2 other colors →
Warranty	2
Availability	Currently unavailable.

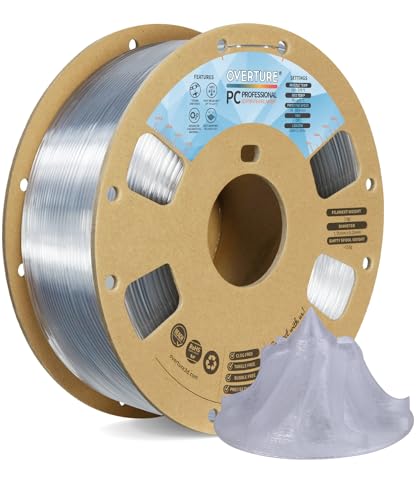

Image	OVERTURE PC Professional Filament, Cardboard Spool, 1kg(2.2lbs), Dimensional Accuracy Probability +/- 0.02mm, Fit Most FDM Printer (Transparent)

Technical properties

CompareVisualize

Density	1.21 g/cm³	ISO 1183, GB/T 1033
Vicat softening temperature	115.3 °C	ISO 306, GB/T 1633
Melt index	10 g/10 min
Young's modulus (X-Y)	2253 MPa ±59	ISO 527, GB/T 1040
Tensile strength (X-Y)	70.2 MPa ±1.8	ISO 527, GB/T 1040
Tensile strength (Z)	44.5 MPa ±0.9	ISO 527, GB/T 1040
Elongation at break (X-Y)	6.7 % ±0.6	ISO 527, GB/T 1040
Bending modulus (X-Y)	2588 MPa ±56	ISO 178, GB/T 9341
Bending strength (X-Y)	93.4 MPa ±2.1	ISO 178, GB/T 9341
Notched Charpy impact strength (X-Y)	5.7 kJ/m² ±1.4	ISO 179, GB/T 1043

Print suggestions

Nozzle temp	250-270 °C
Build surface material	OVERTURE Build Surface, Textured PEI
Build surface treatment	None, Applying PVA glue to the build surface
Build surface temp	90-105 °C
Cooling fan	Off
Print speed	30-50 mm/s
Raft separation distance	0.1-0.2 mm
Retraction distance	1-3 mm
Retraction speed	20-40 mm/s
Threshold overhang angle	45 °
