Overture Nylon, Black
Latest price$37.99$37.99 per kg
Buy on Amazon →| Manufacturer | Overture |
| Filament type | Nylon |
| Data sheet | Not available |
| Format | 1.75 mm ±0.02 |
| Finish | Standard |
| Color | Black |
| Warranty | 2 year |
| Availability | In Stock |

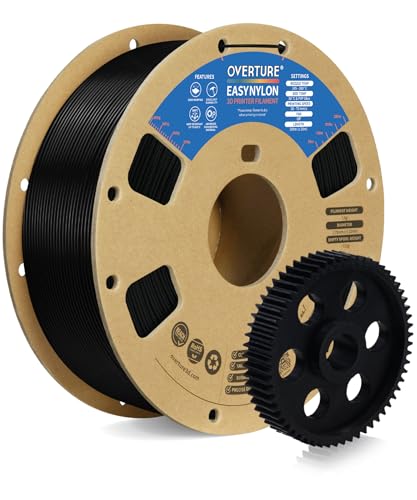

| Image |  OVERTURE Nylon Filament 1.75mm 3D Printer Filament, Polyamide (PA) 1kg Spool (2.2lbs), Dimensional Accuracy +/- 0.02 mm, Fit Most FDM Printer (Black) |
Technical properties
| Density | 1.13 g/cm³ | ISO 1183 |
| Glass Transition Temperature | 67 °C | DSC, 10°C/min |
| Vicat Softening Temperature | 180 °C | ISO 306 |
| Melt Index | 12 g/10 min | ISO 1133 |
| Melting Temperature | 190 °C | DSC, 10°C/min |
| Crystallization Temperature | 128 °C | DSC, 10°C/min |
| Decomposition Temperature | 370 °C | TGA, 20°C/min |
| Young's Modulus (X-Y) | 2223 MPa ±199 | ISO 527 |
| Tensile Strength (X-Y) | 66.2 MPa ±0.9 | ISO 527 |
| Elongation at Break (X-Y) | 9.9 % ±1.5 | ISO 527 |
| Bending Modulus (X-Y) | 1667 MPa ±118 | ISO 178 |
| Bending Strength (X-Y) | 97 MPa ±1.1 | ISO 178 |
| Charpy Impact Strength (X-Y) | 9.6 kJ/m² ±1.4 | ISO 179 |
Print suggestions
| Nozzle temp | 250-270 °C |
| Build surface material | PA film, PI film |
| Build surface treatment | PVA Glue |
| Build surface temp | 25-50 °C |
| Cooling fan | Off |
| Print speed | 30-50 mm/s |
| Raft separation distance | 0.1-0.2 mm |
| Retraction distance | 3-6 mm |
| Retraction speed | 40-60 mm/s |
| Env temperature | 40-60 °C |
| Threshold overhang angle | 55 ° |
| Support material | None |
