Polymaker Fiberon PA6-CF20 Black

Latest priceUnavailable

Buy on Amazon →

Manufacturer	Polymaker
Filament type	PA6
Data sheet	Not available
Format	-
Finish	Carbon Fiber
Color	Black Available in 2 other colors →
Warranty	No info provided
Availability	API Error: 403

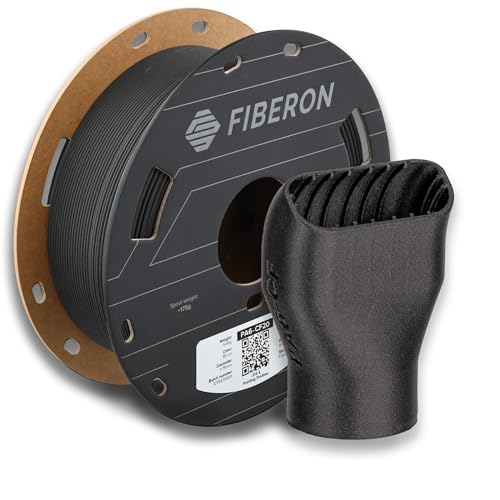

Image	Polymaker Fiberon PA6-CF20 Carbon Fiber Nylon Filament 1.75mm, Black, 0.5kg

Technical properties

CompareVisualize

Density	1.17 g/cm³	ISO 1183, GB/T 1033
Melt index	20.5 g/10 min	300 °C, 2.16 kg
Glass transition temperature	74.2 °C	DSC, 10 °C/min
Melting temperature	218.5 °C	DSC, 10 °C/min
Crystallization temperature	184.6 °C	DSC, 10 °C/min
Decomposition temperature	446.2 °C	TGA, 20 °C/min
Vicat softening temperature	219.2 °C	ISO 306, GB/T 1633
Young's modulus (X-Y)	8636.5 MPa ±211.4	ISO 527, GB/T 1040
Young's modulus (Z)	3759.5 MPa ±118.5	ISO 527, GB/T 1040
Tensile strength (X-Y)	109.3 MPa ±2.4	ISO 527, GB/T 1040
Tensile strength (Z)	54 MPa ±5.2	ISO 527, GB/T 1040
Elongation at break (X-Y)	2.1 % ±0.2	ISO 527, GB/T 1040
Elongation at break (Z)	1.9 % ±0.4	ISO 527, GB/T 1040
Bending modulus (X-Y)	7037.6 MPa ±205.4	ISO 178, GB/T 9341
Bending modulus (Z)	2975.3 MPa ±174.3	ISO 178, GB/T 9341
Bending strength (X-Y)	161 MPa ±3.9	ISO 178, GB/T 9341
Bending strength (Z)	71.3 MPa ±17.7	ISO 178, GB/T 9341
Notched Charpy impact strength (X-Y)	11 kJ/m² ±0.3	ISO 179, GB/T 1043

Characteristics

Flame retardancy

HB

Data Sheet

Print suggestions

Nozzle temp	280-300 °C
Print speed	300 mm/s
Build surface temp	40-50 °C
Drying temperature	100 °C
Drying time	10 hours
Enclosed chamber	Room temperature
Annealing temperature	100 °C
Annealing time	16 hours
Cooling fan	OFF
